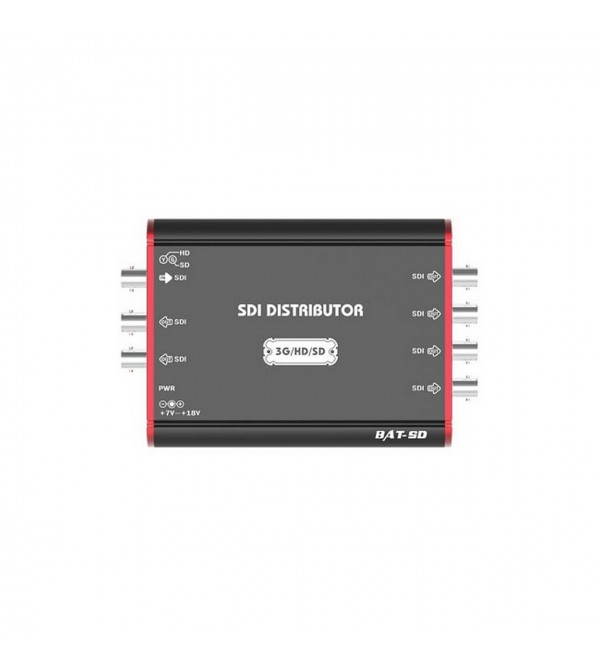

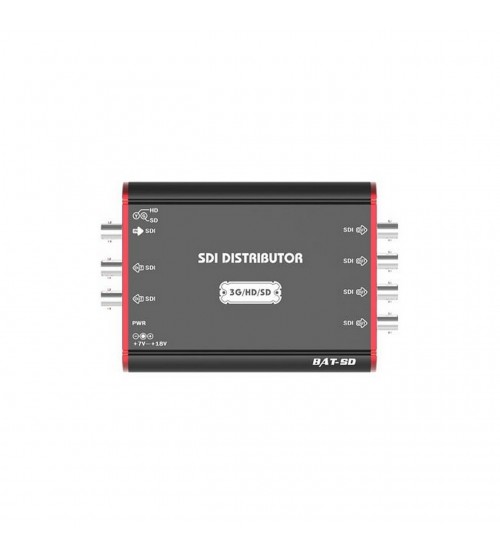

Lumantek Mini Converter BAT Series - SDI 6* Distributor

Input Electrical Specifications

Parameter

Min.

Max.

Units

Typ.

SDI Input Cable Lengths

SD-SDI (Belden 1694A)

250

m

HD-SDI (Belden 1694A)

170

m

3G-SDI (Belden 1694A)

155

m

RF Input

Connector (1 Port)

75ohm, 1 x BNC type female

Display

Input SDI Detect

SD(Green), HD/3G(Yellow)

Output Electrical Specifications

Parameter

Min.

Max.

Units

Typ.

Rise/Fall time

SD-SDI : rise/fall time(20-80%)

ps

600

HD-SDI : rise/fall time(20-80%)

ps

100

3G-SDI : rise/fall time(20-80%)

ps

100

Peck to Peck Voltage Swing

SD/ HD/ 3G-SDI

720

880

mVpp

800

Overshoot/Undershoot

SD/ HD/ 3G-SDI

-10

+10

%

RF Input

Connector (1 Port)

75ohm, 1 x BNC type female

Output Electrical Specifications

Parameter

Min.

Max.

Units

Typ.

DC Input power

7

18

V

Lowest Power Consumption

2

W

Dimensions

131 x 99 x 28.4 (except connector) mm

Weight

370 g
